General information:

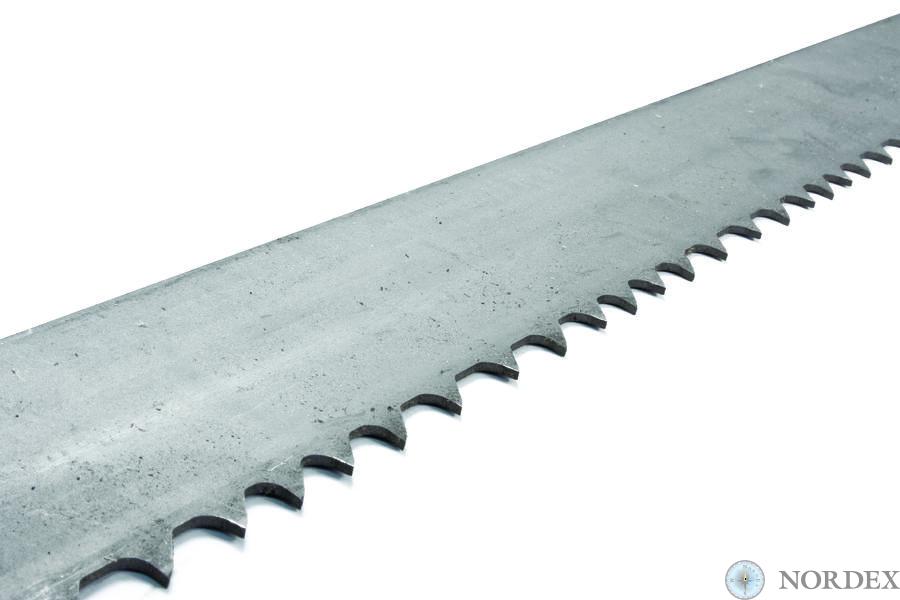

The NORDEX LARGE band saw is made with a special tooth shape to improve chip separation.
Scope of application:
Ferrous and non-ferrous metals, structural steels, copper, brass, aluminum, bronze. Bimetallic band saws of the Large series are specially designed for cutting solid and profile blanks of large cross–section.
Features:
The saw has an angle of attack of the tooth of 11 degrees.
The main advantages of the NORDEX LARGE band saw:
- precise cutting of large-section workpieces;
- the canvas is made using heat treatment technology, which allows you to use the best properties of the material itself.
All saws are manufactured in accordance with ISO - 9001 and ISO -14001 standards
Note: Please do not confuse with the LARGE X canvas
| Width / Thickness | Tooth pitch | Price per meter without VAT, euro | ||||||
|---|---|---|---|---|---|---|---|---|
| 1.25 | 0.8/1.3 | 1.3/2 | 2/3 | 3/4 | 4/6 | |||
| 34x1.1 | • | • | • | • | 1 1/4 x.042 | 8,88 | ||
| 41x1.3 | • | • | • | • | 1.1/2x.050 | 11,13 | ||
| 54x1.6 | • | • | • | • | • | 2x.063 | 17,15 | |
| 67x1.6 | • | • | • | • | • | 2.5/8x.063 | 24,09 | |
| 80x1.6 | • | • | 31,19 | |||||
