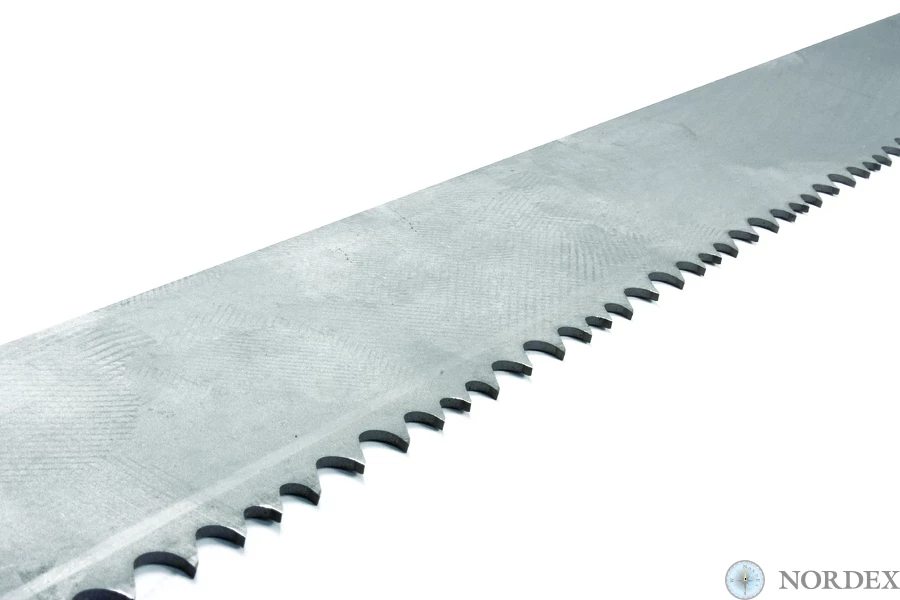

The bimetallic strip has a positive cutting angle – the angle of attack of the tooth is 11 degrees.
Substrate and cutting edge material made of high-speed steel HSS M51 with the addition of cobalt
10% - tooth hardness 69 HRc/ It is suitable for corrosion and acid-resistant steels, as well as for hardened steels.
Main technical specifications:
The body of the blade is made of steel 7HS34(AISI), the material of the teeth is high-speed steel HSS M51, HS2-4-3-10 (DIN), hardness - HRC ≥69 Rockwell. A higher content of tungsten 4-5% and cobalt 3-4%, an increased content of carbides increases the resistance to abrasive wear and increases resistance when working at temperatures up to 620-645C.
Tooth profile - POV.
Sharpening : front angle - 11 , rear angle - 40 .
The wiring is variable alternating.
Designed for corrosion-resistant and acid-resistant steels and alloys. Cutting of steels with a tensile strength of up to 1800 n/mm2
Scope of application:
High resistance to thermal wear makes this blade as productive as possible when cutting blanks of solid and profile sections on machines with a low vibration level.
| Width / Thickness | Tooth pitch | Price per meter without VAT, euro | ||||||
|---|---|---|---|---|---|---|---|---|
| 0.8/1.3 | 1.1/1.6 | 1.3/2 | 1.5/2 | 2/3 | 3/4 | 4/6 | ||
| 27x0.9 | • | • | • | 11,27 | ||||
| 34x1.1 | • | • | • | 15,17 | ||||
| 41x1.3 | • | • | • | • | 18,55 | |||
| 54x1.6 | • | • | • | 28,10 | ||||
| 67x1.6 | • | • | • | • | • | 39,60 | ||
| 80x1.6 | • | 51,06 | ||||||
