Description

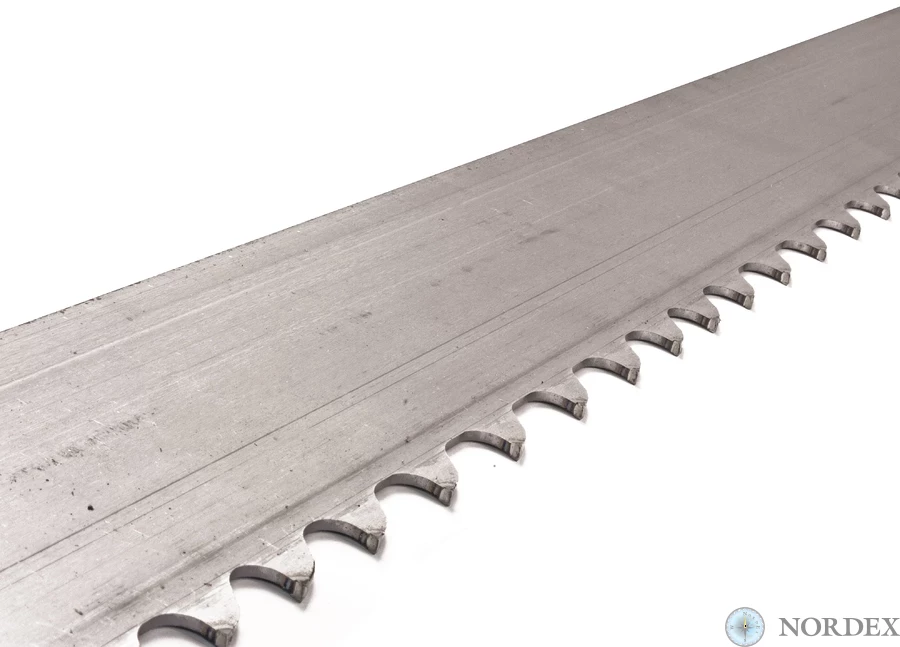

The NORDEX BATTLESHIP CT20 carbide saw is manufactured with a tooth layout to improve the chip separation process when operating the saw on hard steels and alloys.
Scope of application:
- high-speed steels;
- stainless and acid-resistant steels (light);
- stainless and acid-resistant steels (heavy);
- heat-resistant;
- nickel-based alloys;
- titanium alloys;
- steels with a tensile strength of >1000 H/mm2.
Main technical specifications:
The body of the cloth is made of steel ~1.7791
Carbide soldering - W(88-92%),Co(8-12%), hardness - 1600 HV according to Vickers.
Specialized sharpening - GTS type, combined three-stage.
Tooth geometry: trapezoidal and variably beveled.
Sharpening: three-sided, front angle - 9.5, rear angle - 18.
Wiring: combined alternating.
Features
- it has a cutting ability that is more effective in comparison with other saws of this class;
- it is well suited for large-section workpieces, thanks to the saw layout, the probability of so-called collapse is significantly reduced;
- designed for cutting difficult-to-process, especially viscous materials, it works well on equipment that has been without maintenance for a long time.
Characteristics
| width/thickness | Tooth pitch Price per meter without VAT, euro | ||||
|---|---|---|---|---|---|
| 0,8/1,2 | 1,1/1,6 | 1,5/2 | 2/3 | 3/4 | |
| 27x0.9 | - | - | - | 34,56 | 44,96 |
| 34x1,1 | - | - | - | 36,83 | - |
| 41x1.3 | - | - | - | 41,47 | - |
| 54x1.3 | - | - | - | - | - |
| 54x1.6 | - | 54,46 | 56,13 | 59,49 | - |
| 67x1.6 | * | 67,09 | 68,35 | - | - |
| 80x1.6 | * | 89,76 | * | - | - |
