Tungsten carbide is a superhard material. It is second only to diamond in hardness. It is practically indestructible, has very high wear resistance and corrosion resistance. Due to its unique physical properties, tungsten carbide is used for cutting a variety of materials.
Band saws with carbide tungsten coating: advantages

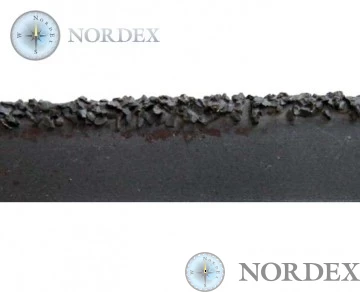

Saws with teeth, regardless of the material of manufacture, have one drawback — their teeth often grind off or break. If even one tooth breaks, the entire canvas fails. There are no teeth in band saws, and the cutting edge is a base made of a very durable material, which is coated with a tungsten carbide coating. The cutting edge can have a continuous or segmented coating of varying degrees of grain. Segment webs, due to their flexibility, can be used on machines with any diameter of pulleys. Tungsten carbide chips are soldered to the base cloth, which provides the ability to withstand high-speed and moderate shock loads, as well as installation errors on the tool during operation. This is its great advantage in comparison with the diamond web, which is sensitive to damage, and it is economically unprofitable to restore it. Band saws with tungsten carbide coating allow you to cut any material without difficulty:
- Wall blocks
- FIBERBOARD
- Ceramics
- Cast iron
- Glass
- Porcelain
- Stone
- Tile
- Tiles
- Cable, etc.
The cut is of very high quality: neat, clean and smooth. It is impossible to achieve such quality using traditional saws. With a tungsten carbide coated band saw, you can easily cut materials of almost any hardness. It is effective when working with composite materials and superhard alloys, which are considered problematic. A feature of band saws with spraying is the absence of teeth. Hard, abrasive and combined materials often break or grind the teeth of the tool. The fibrous material can grind off even the hardest teeth of the tool, whereas Cerrus C4 carbide tungsten band saws with spraying allow you to cut this material without difficulty. CONTINUOUS TYPE Blades with a continuous cutting edge for sawing brittle materials or sheet metal (made of superhard materials).
| Width | Thickness | Type | Grain size | |||
|---|---|---|---|---|---|---|
| Fine | Medium | Medium Coarse | Coarse | |||
| 6 | 0.5 | Continuous | 1.3 | |||
| 10 | 0.65 | Continuous | 1.4 | |||
| 13 | 0.5 | Continuous | 1.3 | 1.4 | ||
| 13 | 0.65 | Continuous | 1.1 | 1.4 | ||
| 19 | 0.8 | Continuous | 1.6 | 2.2 | ||
| 25 | 0.9 | Continuous | 1.7 | 1.8 | 2.24 | |
| 32 | 0.9 | Continuous | 2.24 | |||
Industrial applications Band webs coated with carbide tungsten chips are successfully used in many fields, in particular:
| • Aerospace industry • Use of electrical fittings • Chemical cleaning • Machine shops • Shipbuilding • Use of pipe fittings • Steel mills • Construction • Insulation engineering | • Manufacture of printed circuit boards • Graphite industry • Engine manufacturing • Building engineering equipment • Production of insulation material • Foundries • Recycling and disposal • Devices for testing parts • Production of machine tires • Manufacture of electrodes |
Processed materials
| •Wall blocks • Fiberboard/Fiberboard • Cast iron • Stone • Ceramics | •Tiles/tiles/facing tiles • Composite • Tires • Concrete • Wire rope and cable |
A special feature of band saws with spraying is the absence of teeth. Hard, abrasive and combined materials often break or grind the teeth of the tool. The fibrous material can grind off even the hardest teeth of the tool, whereas Cerrus C4 carbide tungsten band saws with spraying allow you to cut this material without difficulty.
