Description
Features:
- Bimetallic structure
- The cutting part made of high-speed steel M51 provides high performance and durability
- Tooth hardness 69 HRC
- The positive front angle helps to cut through the material more easily and reduces vibration

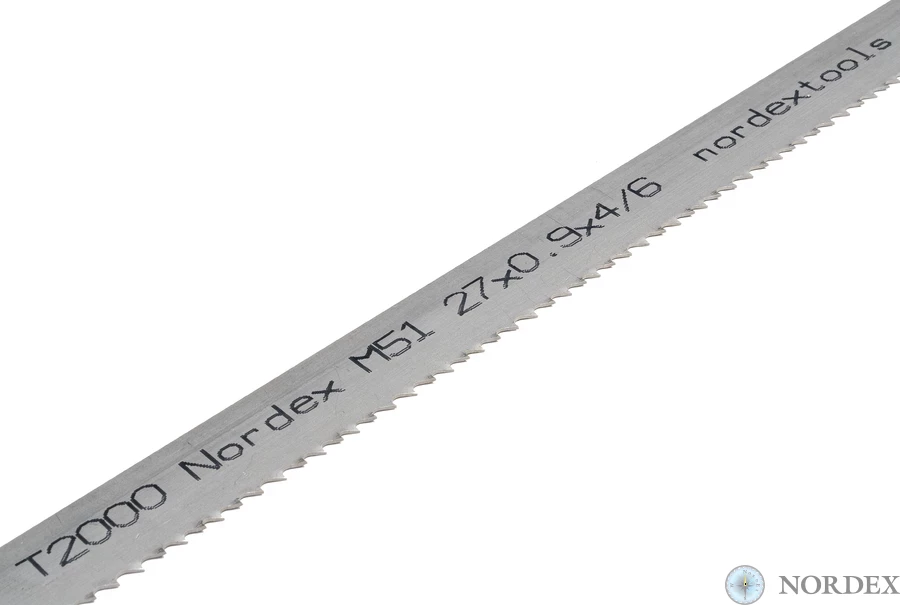

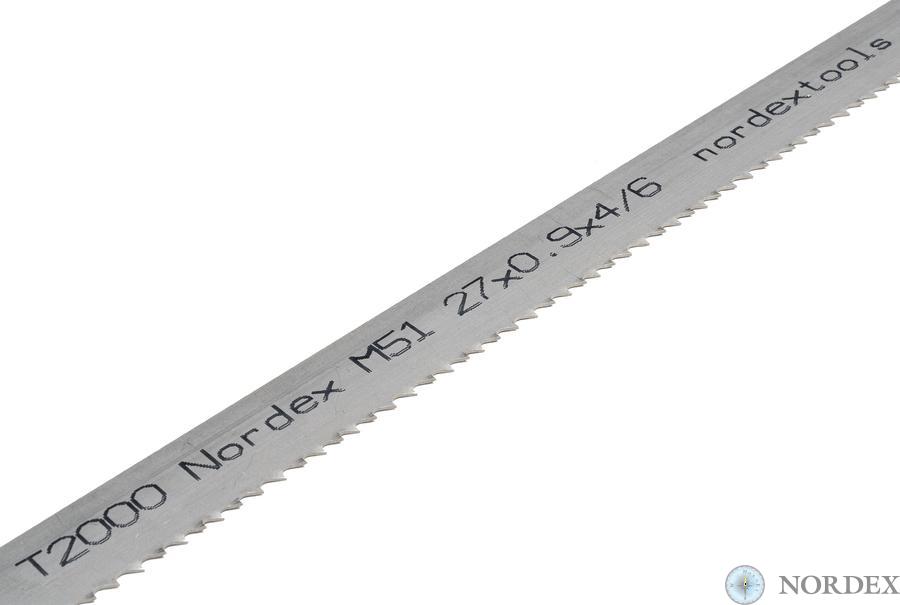

Bimetallic band saw blade made of chromium-doped (~4%) flexible substrate material and cutting edge made of high-speed tool steel HSS M51/ material with cobalt and tungsten content up to 10%, tooth hardness ~69 HRc. The cutting edge made of HSS M51 is designed for cutting high-strength steels. Increased resistance to thermal and abrasive wear significantly increases the service life of the web
Application:
- It is used for processing all types of steels, especially those that form long twisted chips, as well as for high-alloy steels
- Hard-to-process materials
Characteristics
| Description | Variable pitch | A constant step | |||||||
|---|---|---|---|---|---|---|---|---|---|
| inch | mm | meters in babine | 2/3 | 3/4 | 4/6 | 5/7 | 2 Hook | 6 Raker | 8 Raker |
| 3/4*.035 | 19.0*0.90 | 75 m | + | + | |||||
| 1*.035 | 27.0*0.90 | 75 m | + | + | + | + | + | + | + |
| 1-1/4*.042 | 34.0*1.10 | 75 m | + | + | + | + | + | ||
| 1-1/2*.050 | 41.0*1.27 | 45 m | + | + | + | ||||
