Introduction

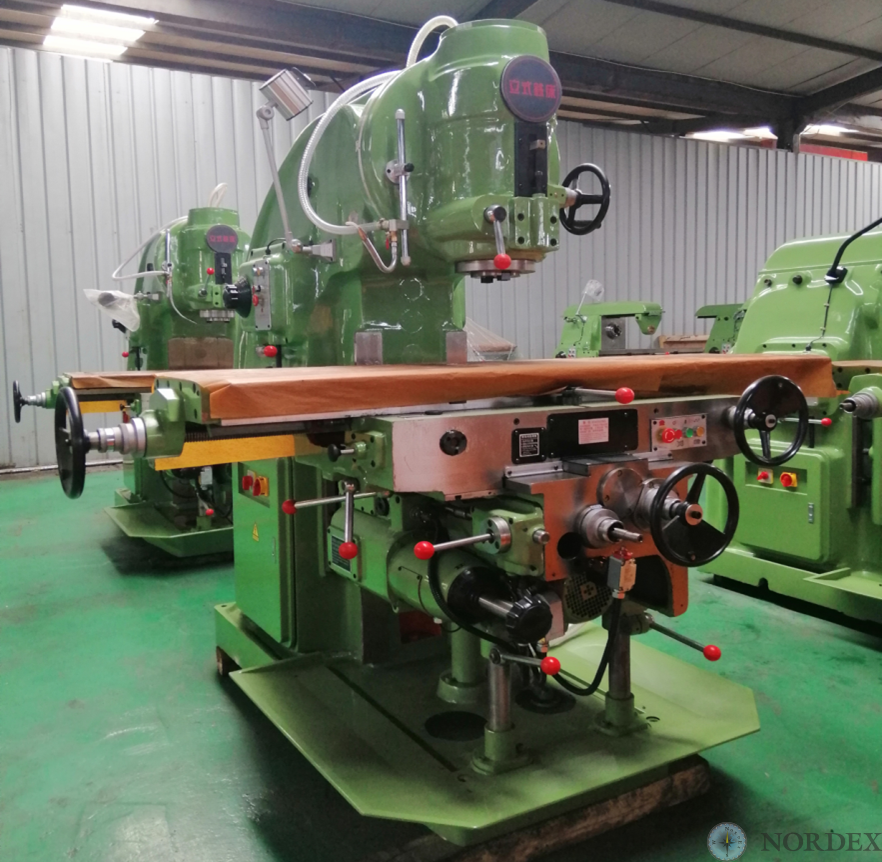

The XA5040 vertical lifting table milling machine is a general-purpose machine, especially suitable for piece, small-scale production and manual processing, use in repair shops, as well as in the production of product components. The XA5040 milling machine with a vertical lifting table is suitable for processing various flat and beveled surfaces, boring gears and other operations. The range can be expanded with an additional universal milling head, a round table, a dividing head and other accessories for milling machines.
- The XA5040 milling machine with a vertical lifting table has good rigidity and can perform heavy duty cutting.
- The spindle motor of the machine has high power and a wide speed range, which allows you to maximize the efficiency of the tool and ensure high cutting speed.
- The wear-resistant cast parts of the machine are made of wear-resistant cast iron with the addition of vanadium and titanium, and the most important parts are made of high-quality alloy steel, which has special stability and durability.
- The XA5040 milling machine with a vertical lifting table has an ideal lubrication system.
Product Description
The XA5040 vertical milling machine is a powerful metal cutting machine with high rigidity, a wide range of variable feed speeds and the ability to withstand heavy loads.
The conical spindle of the XA5040 milling machine with a vertical lifting table can be installed directly or with the help of additional equipment for various cylindrical cutters, plate cutters, molding cutters, end mills, etc. It is an ideal processing equipment for machine tool manufacturing, mold manufacturing, instrument parts, meters, cars, motorcycles, as well as for use in other industries.
The main parts of the structure
- The main components are the base, the body, the work table, the middle guide, the lifting guide, the spindle assembly and other parts.
All of them are made of high-strength materials and processed by artificial aging, which ensures stable operation of the machine during prolonged use.
- The vertical milling head can be adjusted vertically by ± 45° and rotate in the opposite direction, which expands the processing capabilities
The main shaft bearing is a tapered roller bearing with a high load capacity, and the main shaft uses low-energy braking, which has a high braking torque and ensures a quick and reliable stop.
- The work table has three types of movement along the X/Y/Z axes: manual feed, drive feed and fast movement. The feed rate can be adjusted to meet different processing requirements; with the help of fast feed, the workpiece is quickly moved to the processing position. This function allows you to perform processing easily and quickly and reduces the preparation time for work.
- Pairs of guide rails are installed in three directions - the X, Y, and Z axes. During manufacture, they undergo ultra-frequency hardening, precision grinding and scraping, and are equipped with a forced lubrication system, which increases the accuracy of work and prolongs the service life of the machine.
- The forced lubrication system lubricates the vertical, horizontal and transverse movement screws, as well as lubricates the guide rails, which reduces machine wear and ensures its efficient operation; at the same time, the cooling system changes the coolant supply, adjusting the nozzle parameters in accordance with different processing requirements.
- The machine has an ergonomic design and is easy to operate; simple and intuitive visual symbols are applied on the control panel.
