Description
- High accuracy due to the arrangement of the axes according to the principle of a horizontal boring machine (Z axis in the part)
- Economical processing of steel and casting
- Due to the spindle rotation speed of 10,000 rpm, it is also best suited for mixed operation with aluminum processing
- For processing light metals by cutting high-speed motor spindle up to 16,000 rpm
- A large selection of tool shops with different capacities for optimal adaptation to your production
- Easy expansion to flexible production modules and systems
- Round Pallet Drives
- Linear and rack-mounted pallet drives
- Uploading using portals and manipulators
Specifications:
| Horizontal Machining Center | Type | NBH 5 |
|---|---|---|
| Operating range | ||
| X-axis stroke | mm | |
| Y-axis stroke | mm | |
| Z-axis travel | mm | |
| Diameter of the collision contour | mm | |
| Height of the fixture | mm | |
| Displacement measurement system | View | |
| Integrated into the profile guide | standard | |
| Optical scale ruler | [option] | |
| Positioning error A (DIN ISO 230-2) | mm | 0,007 |
| Pallet / Turntable | ||
| The clamping surface of the DIN 55201 pallet | mm | 500 x 500 |
| Pallet load | kg | 500 |
| Table with direct drive from a torque motor, the smallest division step | hail. | 0,001 |
| The rotation speed of the axis In | rpm | 80 |
| Pallet change time according to VDI 2852 | about a second. | 9 |
| Motorspindel | ||
| Max. rotation speed | rpm | 10.000 / [15.000] |
| Drive power 100% (40% PV) | kW | 13-18 / 14-20 |
| Nm | 146 - 202 / 89 - 127 | |
| Gear spindle | ||
| Max. rotation speed | rpm | – |
| Drive power 100% (40% PV) | kW | – |
| 100% torque (40% PV) | Nm | – |
| Feed / Accelerated | ||
| Feed range | mm/min | 0 – 50.000 |
| Accelerated travel on the X / Y /Z axes | m/min | 50 |
| Acceleration along the X / Y /Z axes | m/s2 | 7 |
| Disk Tool Store | number of cells | 40 |
| Max. tool diameter | ||
| Max. tool diameter | mm | 80 |
| ... with free adjacent cells | mm | 150 |
| Max. tool length | mm | 350 |
| Max. tool weight | kg | 10 |
| Cut-to-cut shift Time (VDI 2852) | s | 4,0 |
| Chain tool shop, cells | q-in | – |
| Max. tool diameter | mm | – |
| ... with free adjacent cells | mm | – |
| Max. tool length | mm | – |
| Max. tool weight | kg | – |
| Cut-to-cut shift Time (VDI 2852) | s | – |
| Shelving / Cassette store | view | shelf |
| Loading/unloading position [drawer] | q-in | 1 [4] |
| The instrumental cassette | q-in | – |
| Number of places for tools | q-in | 134 |
| Max. tool diameter | mm | 80 |
| ... with free adjacent cells | mm | 150 |
| Special tools (ø x width x length) mm | – | – |
| Max. tool length | mm | 350 |
| Max. tool weight | kg | 10 |
| Cut-to-cut shift Time (VDI 2852) | s | 4,0 |
Characteristics
Horizontal machining centers

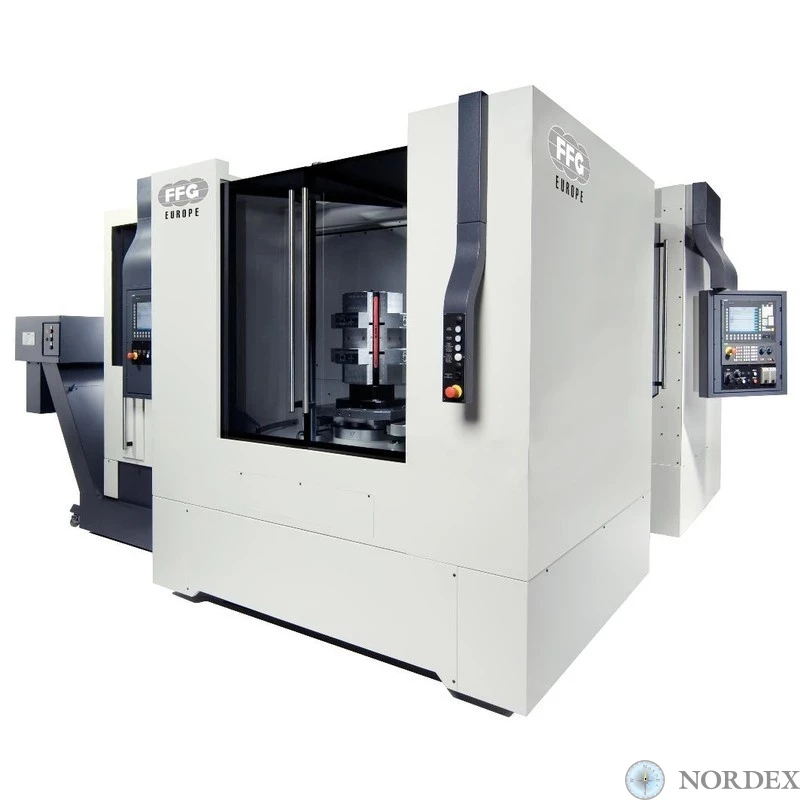

The NBH 5 machine with a pallet size of 500 x 500 mm is an entry-level model of the high-performance NBH series.
466 Nm of torque (100% PV) is the absolute maximum in this power class. With a wide selection of in-house motor spindles and gear spindles (CORCOM) with production-optimized rotation speed options and a wide torque range, the NBH 5 machine is a true universal machining center. The tool shops that are being produced are also universal. Whether it is a disc, chain or rack store, you can create the optimal configuration of the NBH 5 machine for your production. The machine design, including a pallet changer with 180° rotation and a tool magazine, is a compact transport unit. The associated short installation and commissioning time ensures a quick start of production.
