Description
- High accuracy due to the arrangement of axes according to the principle of a horizontal boring machine (Z axis in the part)
- Economical processing of steel and casting
- Powerful torque thanks to the gear spindle
- Due to the spindle rotation speed of 10,000 rpm, it is also best suited for mixed operation with aluminum processing
- For processing light metals by cutting high-speed motor spindle up to 16,000 rpm
- A large selection of tool shops with different capacities for optimal adaptation to your production
- Easy expansion to flexible production modules and systems
- Round Pallet Drives
- Linear and rack-mounted pallet drives
- Uploading using portals and manipulators
| Horizontal Machining Center | Type | NBH 500 |
|---|---|---|
| Operating range | ||
| X-axis stroke | 700 | |
| Y-axis stroke | 630 | |
| Z-axis travel | 700 | |
| Diameter of the collision contour | 700 | |
| Height of the fixture | 1.000 | |
| Displacement measurement system | direct | |
| Integrated into the profile guide | standard | |
| Optical scale ruler | [option] | |
| Positioning error A (DIN ISO 230-2) | mm | 0,007 |
| Pallet / Turntable | ||
| The clamping surface of the DIN 55201 pallet | mm | 500 x 500 |
| Pallet load | kg | 800 |
| Table with direct drive from a torque motor, the smallest division step | hail. | 0,001 |
| The rotation speed of the axis In | rpm | 80 |
| Pallet change time according to VDI 2852 | about a second. | 11 |
| Motorspindel | ||
| Max. rotation speed | rpm | 10.000 / [16.000] |
| Drive power 100% (40% PV) | kW | 28-39 / 40-52 |
| Nm | 126 - 180 / 94 - 123 | |
| Gear spindle | ||
| Max. rotation speed | rpm | 10.000 |
| Drive power 100% (40% PV) | kW | 22,5 - 22,5 |
| 100% torque (40% PV) | Nm | 466 - 466 |
| Feed / Accelerated | ||
| Feed range | mm/min | 0 – 50.000 |
| Accelerated travel on the X / Y /Z axes | m/min | 50 [90] |
| Acceleration along the X / Y /Z axes | m/s2 | 6 [10] |
| Disk Tool Store | number of cells | 40 |
| Max. tool diameter | ||
| Max. tool diameter | mm | 80 |
| ... with free adjacent cells | mm | 210 |
| Max. tool length | mm | 550 |
| Max. tool weight | kg | 10 |
| Cut-to-cut shift Time (VDI 2852) | s | 4,2 |
| Chain tool shop, cells | q-in | 60 [90] |
| Max. tool diameter | mm | 80 |
| ... with free adjacent cells | mm | 175 |
| Max. tool length | mm | 550 |
| Max. tool weight | kg | 12 |
| Cut-to-cut shift Time (VDI 2852) | s | 4,3 |
| Shelving / Cassette store | view | shelf |
| Loading/unloading position [drawer] | q-in | 1 [4] |
| The instrumental cassette | q-in | – |
| Number of places for tools | q-in | 134 |
| Max. tool diameter | mm | 80 |
| ... with free adjacent cells | mm | 150 |
| Special tools (ø x width x length) mm | – | – |
| Max. tool length | mm | 450 |
| Max. tool weight | kg | 10 |
| Cut-to-cut shift Time (VDI 2852) | s | 4,3 |
Characteristics
Horizontal Machining Center

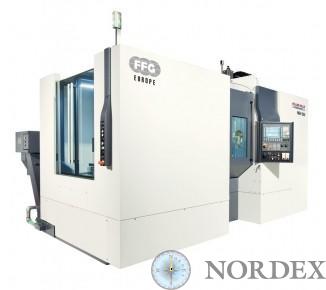

The NBH 500 pallet machine with a pallet size of 500 x 500 mm is an entry-level model of the high-performance NBH series.
466 Nm of torque (100% PV) is the absolute maximum in this power class. With a wide range of in-house motor spindles and gear spindles (CORCOM) with production-optimized rotation speed options and a wide torque range, the NBH 500 machine is a true universal machining center. The tool shops that are being produced are also universal. Whether it is a disc, chain or rack store, you can create the optimal configuration of the NBH 500 machine for your production. The machine design, including a pallet changer with 180° rotation and a tool magazine, is a compact transport unit. The associated short installation and commissioning time ensures a quick start of production.
