Description

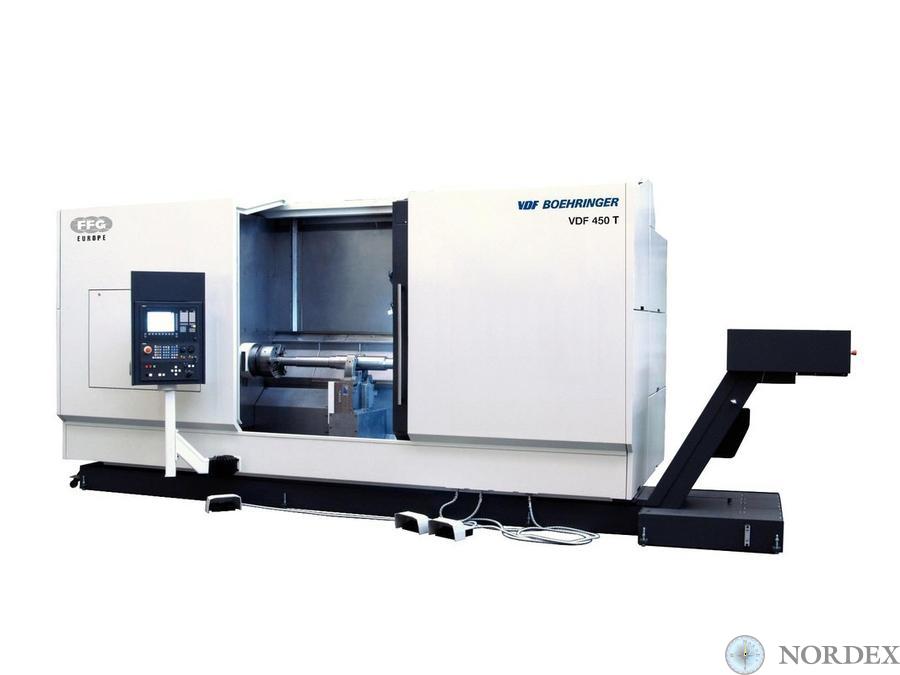

| Type of machine | VDF 450 T | |
|---|---|---|
| Working area | ||
| Turning length | mm | 1300 / 2000 / 3000 / 4500 |
| The largest processing diameter above the bed | mm | 700 |
| Turning +over the bed | mm | 450 |
| Transverse stroke, X-axis | mm | 265 |
| Main spindle | ||
| Spindle headstock | Size | A8 / A11 |
| Diameter of the front spindle bearing | mm | 150/150 |
| Drive power 40% PV | kW | 95 / 56 |
| Max. number of revolutions | rpm | 3100 /2800 |
| Torque, max. 40% PV | Nm | 800 / 3400 |
| Tailstock | ||
| Centre | № | MK5 / MK6 |
| Clamping force | Book | 18 |
| Feed drives (AC motors) | ||
| Accelerated speed | m/min. | 30 |
| Feed force | Book | 10 |
| Tool support | ||
| Number of insturmental calipers | pieces | 01.02.09 |
| Seats for the tool on each turret | Q-in | 12 |
| Of these, there are drive units for each revolver head | Q-in | 12 |
| Mandrel for cylindrical shanks DIN 69880 | mm | 50 |
| Axis, stroke | mm | +75 / -75 |
| Occupied area (L x W with a turning length of 1000) | mm |
Characteristics
Horizontal multi-purpose lathes
The machine concept is optimized taking into account the costs per unit of production
The complete set of the VDF T machine is exactly according to your requirements, "You only pay for what you really need"
The reliable design of the machine ensures precision in production conditions for the long term
Convenient access to all nodes facilitates setup and maintenance
High technological competence
