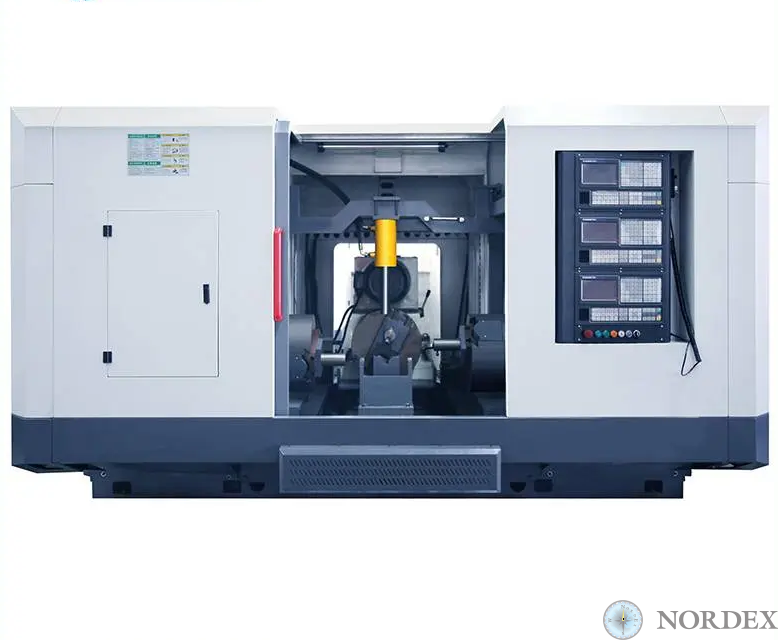

1) All our machines are powered by Huadian CNC controller (or Siemens, Fanuc), can provide double spindle connection, and then finish processing the hole, thread and sphere. The CNC controller has good compatibility, powerful functions and easy operation.
2) The feed table guides use high-quality gray cast iron, coarse casting, quenching and aging treatment three times. Completely eliminates residual internal stress. The surface of the guide is subjected to supersonic hardening, and the hardness reaches HRC55. Through high-precision grinding to ensure precision, rigidity and stability.
3) The transmission part uses precision ball screw and interpolation to eliminate the gap to ensure the stable drive of the machine.
4) The power head is equipped with a three-stage manual speed switch with a powerful motor, provides low speed but high torque, can withstand heavy loads when cutting, improves processing efficiency.
5) The working equipment uses an automatic hydraulic pressure clamp to increase efficiency and reduce labor intensity.
6) The machine uses centralized lubrication to ensure that each moving part is fully lubricated, and then increase the service life of the machine.
