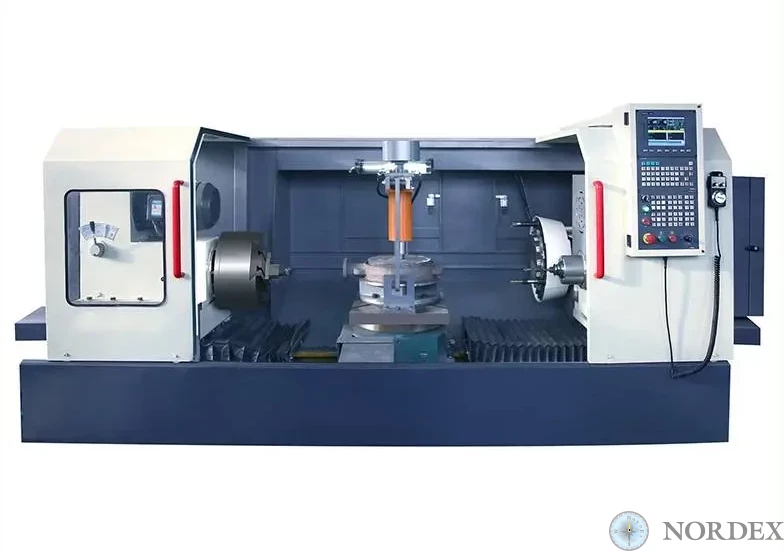

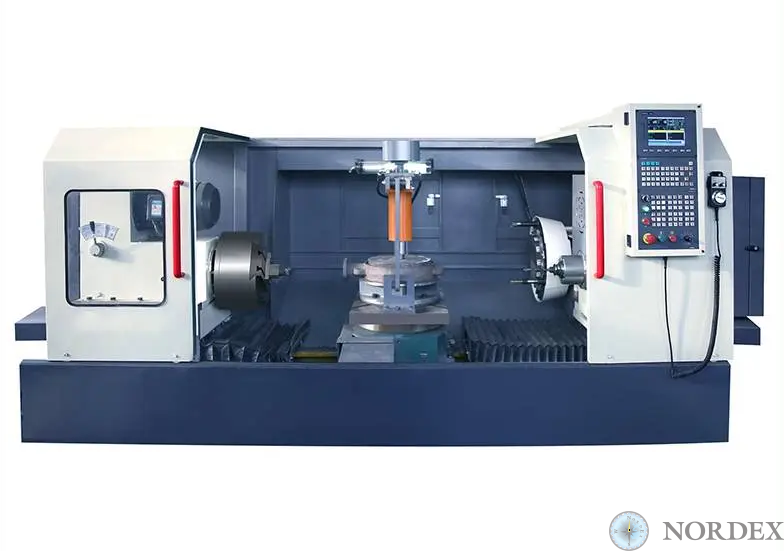

This machine is a turning and milling machining center. The left side consists of a horizontal CNC movable table and a CNC brake head. The right side is a horizontal movable CNC table, a drilling head (horizontal machining center) and a tool magazine. The composition of the cylinder. The middle part consists of a hydraulic turntable, fixtures and other parts and is equipped with independent electrical cabinets, hydraulic stations, centralized lubrication devices, full protection, chip conveyors and water pipes. The workpiece is lifted manually and clamped hydraulically. For details, see the diagram of the mechanism.
The frame body is made in the form of a solid cast mold, the frame guide is precisely ground, and the contact surface of the guide is carefully cleaned to ensure the accuracy of the machine movement and ensure the stability of the equipment.
As shown in the figure, when processing the valve body, the operator places the required workpiece on the tool attachment and presses the workpiece. After adjusting the position of the workpiece, activate the CNC panel and the device will start. Both ends of the equipment are processed simultaneously. One end performs machining steps such as the outer circle and the end face. At the other end, drilling, boring and internal step processing are performed. It is equipped with a tool shop for automatic tool change. After processing the throttle valve in the current position, the turntable rotates 180°. The end face and outer circle are processed after boring, and the end face of the outer circle and the end surface are processed for boring.
The operation is simple, and the workpiece can be processed by several processes with only one positioning. And it has greatly reduced the workforce.
