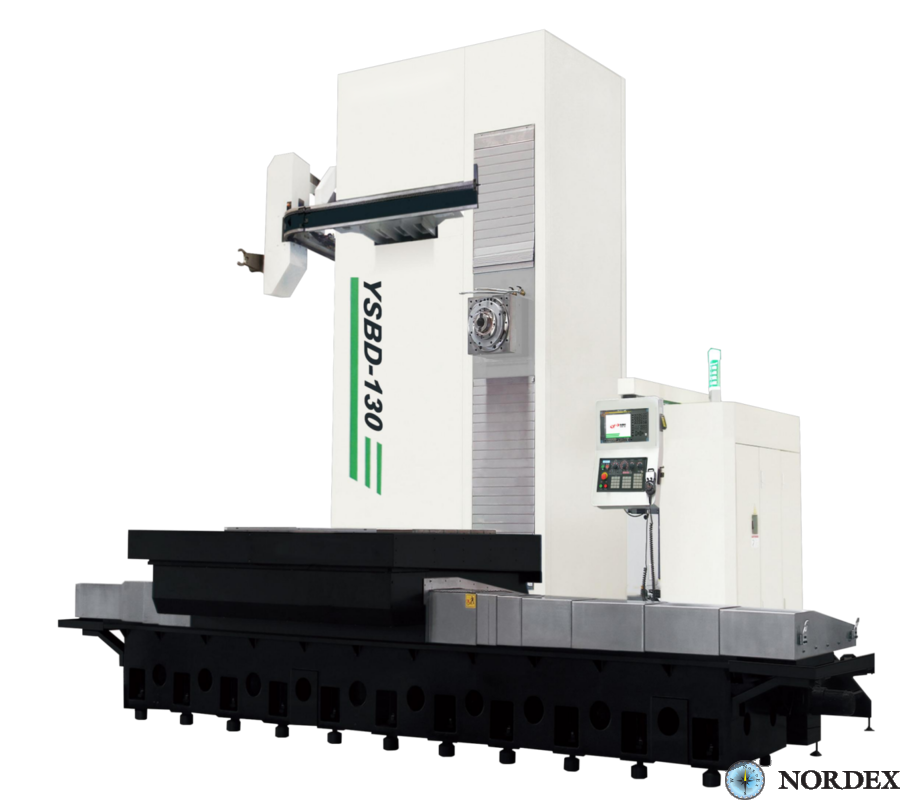

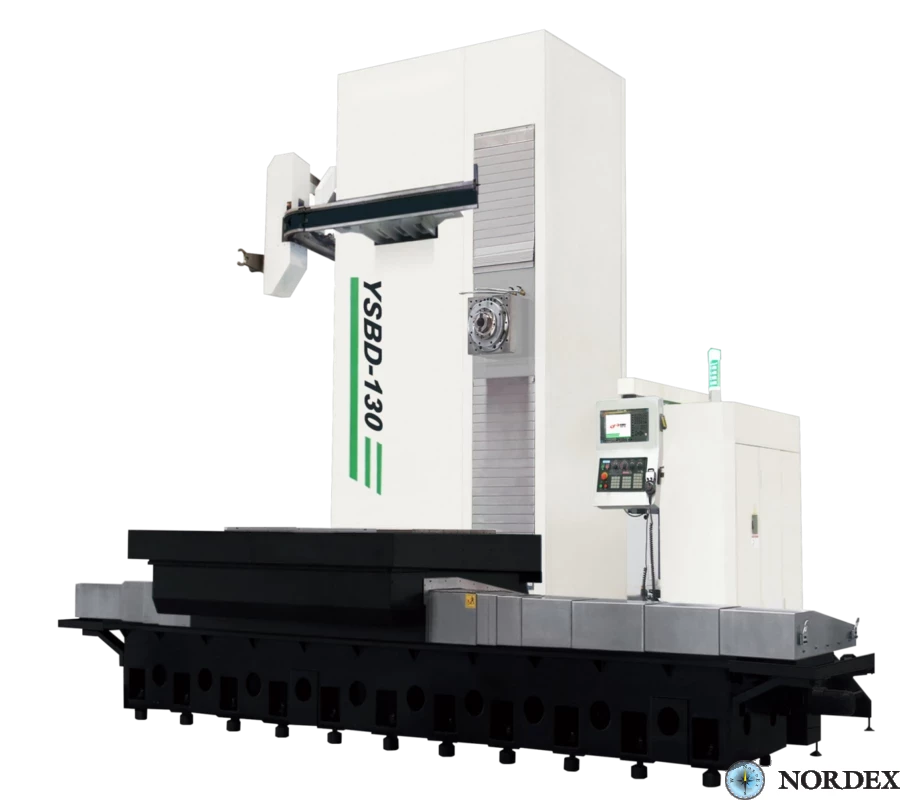

OturnYSBD-130

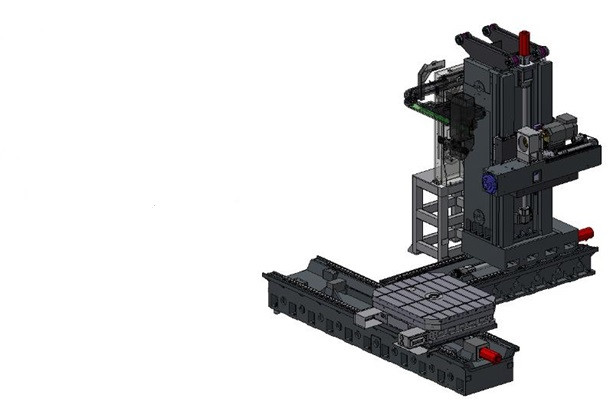

EQUIPMENT STRUCTURE

1. The X/Y/Z axes use high-strength high-speed linear roller guides, and the feed speed can reach 10/8/10 (m/min); the guides of each axis use imported heavy-duty roller linear guides. High load capacity and stable accuracy;

2. The machine is equipped with a rigid central spindle, the nose of the spindle has a unique labyrinth device and a labyrinth purge device to effectively protect the spindle. The maximum spindle rotation speed can reach 3000 rpm, characterized by high rigidity and high precision;

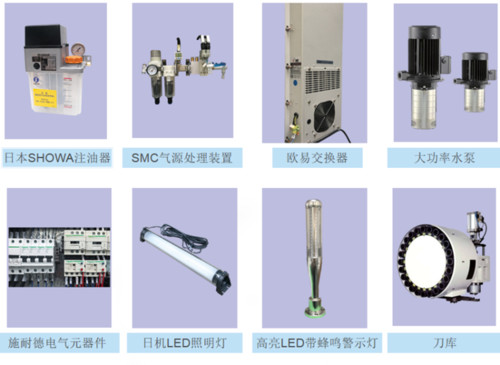

3. Machine parts belong to well-known brands. (see details)

The design of the guides:

1. The X/Z axis uses a heavy-duty linear roller guide, which has good rigidity, high precision and long service life.
2. The axis guide column has a rectangular design, and the extended rigid rail design can provide the stability and stability required by the machine during intensive cutting

Machine Features

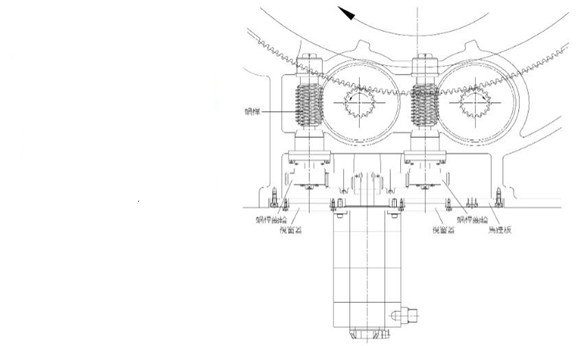

1. 4×90° positioning, automatic locking, digital control of AC servo motor and worm gear system to achieve good backlash compensation, the B-axis movement of the desktop includes an imported hydraulic cylinder with locking.
2. The machine uses a spiral chip conveyor, and the cutting tool flushing device is equipped for automatic timely chip cleaning, which avoids the thermal effect of chips on the machine and ensures high precision machining of the machine..
3. The base of the machine is made of high-strength cast iron HT300
