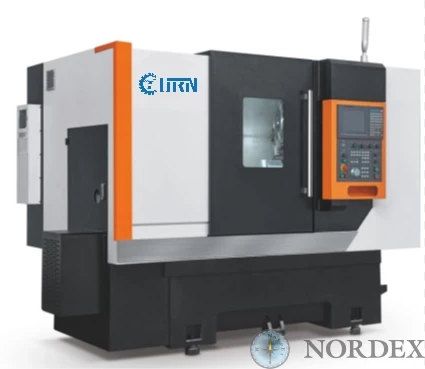

Features
- Description of the housing features:
Due to the hardening of the stiffeners, the structure can meet the needs of long-term trouble-free operation, also provides greater vibration resistance and shock absorption with low deformation, which makes the machine durable and has particularly outstanding performance characteristics.
Thus, the products of this series can be used in heavy-duty cutting and maintain ultra-high precision for a long time, and the high rigidity of the machine can also extend the service life of the tool.
- High rigidity, intensive cutting, high stability:
- inclined bed at an angle of 45°,
The reinforced design minimizes distortion and thermal deformation. The wide bed and the precision linear rolling guide provide the machine with high cutting characteristics and long-term preservation of accuracy.
- Fully protected enclosure providing you with a safe and clean working environment.
- The headstock is designed to reduce thermal deformation, which ensures high cutting accuracy and stability.
- Precision roller guide, track width 30 mm;
- The feed unit is equipped with a 32 mm diameter roller lead screw, with preload at both ends to eliminate loss of accuracy caused by thermal elongation.
- High precision, high dynamic performance:
- Two pairs of high-precision NSK P4 bearings are used to achieve high rigidity and spindle rotation accuracy. The main shaft provides stepless speed control using an AC servo motor.
- Special type V-belt driven spindle, can simplify maintenance, as well as reduce the thermal impact on the accuracy of the spindle motor, due to the pulley reduction factor and accurate calibration, the maximum motor speed and spindle speed are achieved simultaneously, which minimizes the impact of the total output power.
At low speeds, the highest torque is achieved.
- Thermal stability:
-The headstock and the sliding seat are in the same angular plane, which reduces distortion caused by thermal deformation.
- High-speed grease-lubricated rolling bearings are used to ensure the thermal stability of the housing and the temperature of the main shaft.
