Product Description

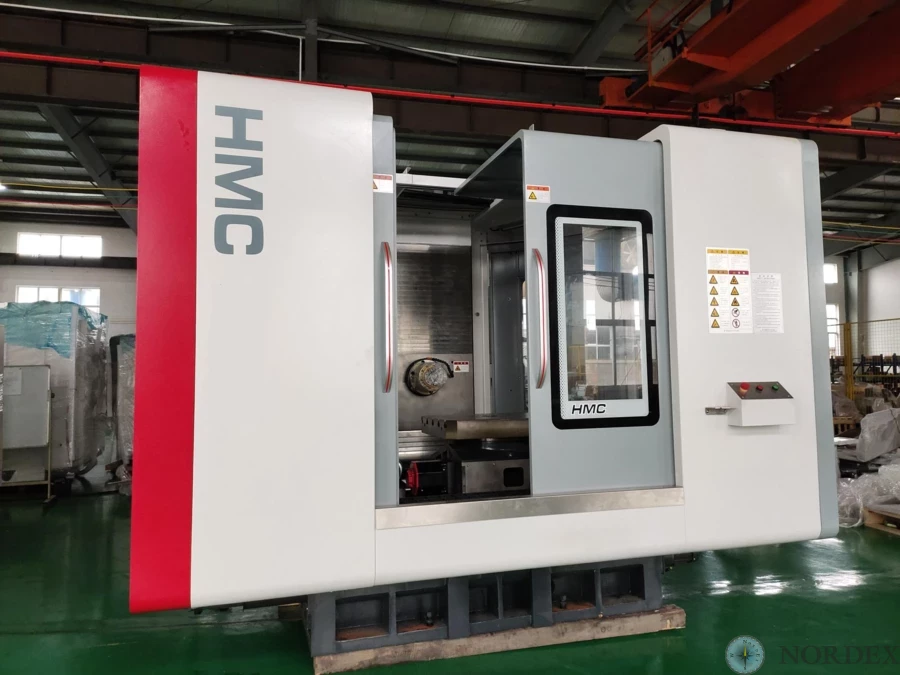

- This horizontal machining center is widely used in the processing of high-precision parts, especially suitable for processing IT components, auto parts, optical instruments, medical equipment, pneumatic components, aviation and aerospace parts and molds. This machine is mainly milling, suitable for drilling, threading, unfolding, boring and continuous milling of parts.
- The spindle
The standard spindle of the BT-50 machine has a spindle speed of 5,300 revolutions per minute. The interaction with the spindle annular sprayer significantly improves the surface of the tool and improves the purity of the machining, as well as improves the machining accuracy and efficiency of the parts. The main shaft is equipped with a modular head design connected to a pulley with dynamic balance adjustment, and a high-tension toothed belt drive that does not slip, ensuring smooth operation at high speeds, and can significantly reduce transmission noise and heat generation.
- Tool Shop
The standard 40-station tool shop is equipped with highly reliable automatic tool change and uses the random short-range trajectory method to improve the efficiency of tool change; it can process more complex parts. Quick lever type tool change, with precise cam mechanism drive, fast and stable tool change, the cam mechanism tool magazine can ensure high-precision rotation, and each machine is fully tested with heavy tools to ensure smooth use of heavy tools.
- BALLSCREWS
The high speed of the X/Y/Z/ axis movement in this model significantly reduces the processing time of the parts. On all three axes, a precision double-nut ball lead screw with preload is used. The design of the pre-tensioned support base at both ends allows you to eliminate transmission backlash and pre-compensate for the error caused by temperature rise to ensure positioning accuracy and repeated positioning accuracy of the machine. Excellent three-axis support, shock-proof locking device when overrun, to avoid direct collision of the flange, motor housing and bearing housing, and can also prevent displacement of the motor housing and bearing housing.
- Linear guide
The X, Y axes use heavy-duty roller linear guides with a width of 45 mm / Z use heavy-duty roller linear guides with a width of 55 mm with a four-row tooth profile with a single arc, integrating an optimized design of the superheavy load structure compared with other linear sliding guides have improved load and rigidity; due to the characteristics of equal load in four directions and functions Self-installing, they can eliminate assembly errors on the mounting surface and ensure high accuracy.
- Central lubrication system
- Body casting
The body, seat, base and column are made of high-quality Mihana cast iron. It has good shock absorption and heat resistance, does not deform under strong cutting, ensuring the accuracy of machine processing. The base is designed using a large span column structure, which significantly increases the contact area between the column and the base and strengthens the support structure; the column has a cellular structure. The base is a heavy-duty structure that can withstand heavy loads and at the same time maintain high accuracy.
- The controller
The machine is equipped with the Japanese FANUC 0I-MF PLUS operating system, a high-torque motor that improves processing efficiency. Stable performance and convenient operation; color display and man-made design make the operation of the equipment simple and fast.
