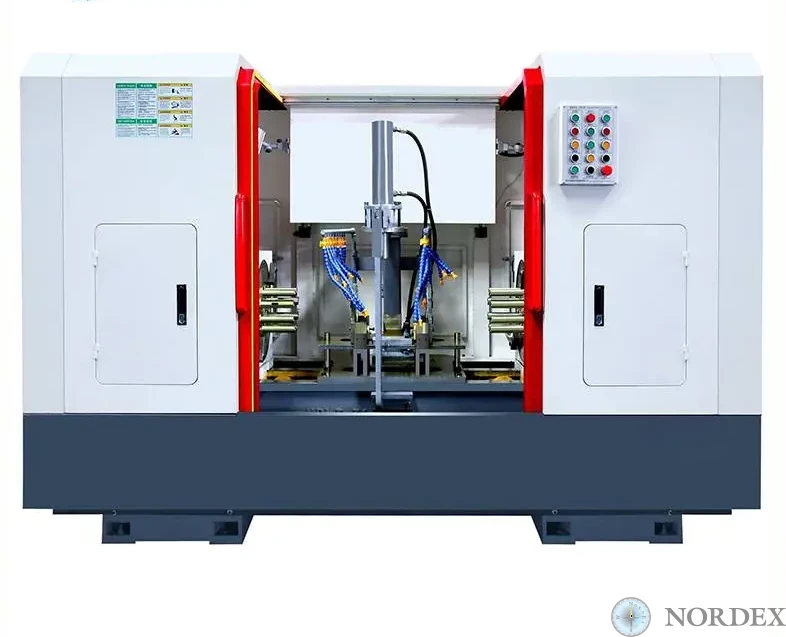

1) This machine worked with Huadian PLC controller, it can work for many procedures, such as end hole, middle hole, hole and sphere, powerful function and easy operation.
2) The guides of the sliding feeding table use high-quality gray cast iron, coarse casting, quenching and aging treatment three times. Completely eliminates residual internal stress. The surface of the guide is subjected to supersonic hardening, and the hardness reaches HRC55. Through high-precision guide grinding to ensure precision, rigidity and stability.
3) The transmission part uses precision ball screw and interpolation to eliminate the gap to ensure the steady drive of the machine.
4) The power head is equipped with a three-stage manual speed switch with a powerful motor, provides low speed but high torque, can withstand heavy loads when cutting, improves processing efficiency.
5) The working equipment uses an automatic hydraulic pressure clamp to increase efficiency and reduce labor intensity.
6) The machine uses centralized lubrication to ensure that each moving part is fully lubricated, and then increase the service life of the machines.
