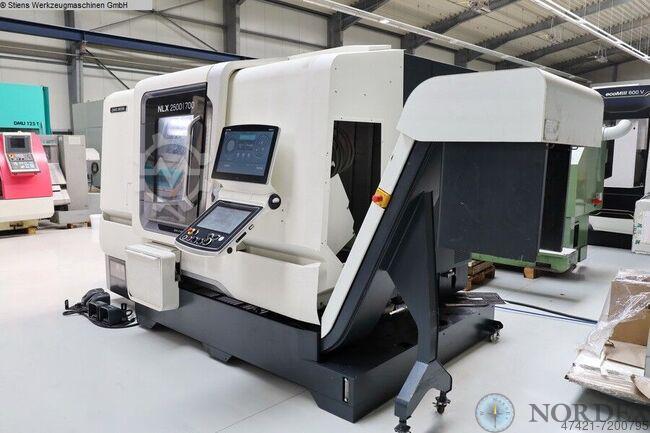

Equipment type: CNC Turning and Milling Center
Manufacturer: DMG MORI
Model: NLX 2500 SY / 700
Year of manufacture: 2016
Spindle working hours: 1200
Opening hours: 5220
TECHNICAL SPECIFICATIONS:
Turning diameter: 356 mm
Turning length: 705 mm
Control: M730 UM MAPPS CELOS
Folding bed: 920 mm
Rotary transverse flap: 742 mm
Main spindle:
- Rotation speed range - main spindle 4000 min/-1
- Drive power - main spindle 18.5 / 15 kW
- Spindle JIS A2-8
- The spindle hole is 91 mm
- max. bar diameter 80 mm
- useful bar diameter ( - ) mm
- Axis With 0.001 °
Counterspindle:
- Speed range - counterspindle 6,000 min/-1
- Drive power - counter spindle 11 / 7.5 kW
- The spindle hole is 73 mm
- The useful diameter of the rod is 43 mm
- Axis With 0.001 °
Travel:
- x-displacement 260 mm
- z-displacement 795 mm
- Y - axis +/-50 mm
- The axis is 734 mm
- fast movement (X/Y/Z) 30 / 10 / 30 m/min
Revolver head for tools:
- The number of places for the instrument is 12 positions.
- Shank height for a square tool is 25 mm
- The diameter of the drill shank is 50 mm
- The indexing time of the turret is 0.27 seconds.
Positions of the drive tool:
- Rotation speed range - drive tools max. 10,000 min -1
- Drive power - drive tools 5.5 / 4.2 kW
Total electricity demand: 37.92 kVA
Machine weight: 6.4t
Occupied area: 5.0 x 3.0 x 2.3 m
Package contents:
- Chip Conveyor
- The coolant unit
- Hydraulic unit
- Axis C 0.001
- The Y axis
- Tool drive
- Lighting of the work area
- The Detail Catcher
- Counterspindel
- Warning light
- drive tools 8 pos.
- Tool holder div.
- Interface for the rod feeder
- CNC turning and milling center Hnesp 32
DMG MORI - NLX 2500 SY / 700
- counterspindel
- tool drive
- the Y axis
Cost of equipment: on request
Delivery time is 25-30 days
Available in Turkey
TERMS OF DELIVERY – CPT Turkey. Customs clearance and container loading are included in the price.
