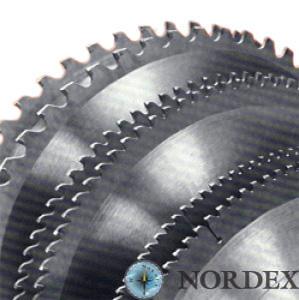

Segment saws

Saw Parameters			Tech. holes	Number of segments On the canvas	Number of teeth per segment/ on the saw blade
Diameter	Shi-ri- on	Opened thie	Number/ Diameter	Number of segments On the canvas	2	3	4	5	6	8	10	12
275	3,0	32	2/8/45 + 2/11/63	12					72	96	120	144
		40	2/8/55 + 4/12/64	12				60	72	96	120	144
315	3,6	40	2/11/55 + 4/12/64	14			56	70	84	112	140	168
360	3,6	40	2/11/55 + 4/12/64	16			64	80	96	128	160	192
		50	4/15/80 + 4/15/85	16			64	80	96	128	160	192
370	3,6	50	4/15/80 + 4/15/85	16			64	80	96	128	160	192
400	4,0	50	4/15/80 + 4/15/85	16			64	80	96	128	160	216
425	4,0	50	4/15/80 + 4/15/85	18			72	90	108	144	180
450	4,0	40	2/15/80 + 2/15/100	18		54	72	90	108	144	180
		50	4/15/80 + 4/18/100	18		54	72	90	108	144	180	216
500	5,0	50	4/15/80 + 4/18/100	18		54	72	90	108	144	180
570	5,7	50	4/15/80 + 4/18/100	18		54	72	90	108	144	180
		80	8/22/142	18			72	90	108	144
630	6,0	80	4/23/120 +4/47/160	20		60	80	100	120	160	200	240
		80	8/22/142	20			80	100	120	160
670	6,2	80	4/23/120 + 4/27/160	20		60	80	100	120	160	200
		80	8/22/142	20			80	100	120	160
710	6,2	80	4/23/120 + 4/27/160	24	48	72	96	120	144	192	240	288
770	6,7	80	4/23/120 + 4/27/160	24			96	120	144	192	240
820	7,2	80	4/23/120 + 4/27/160	24		72	96	120	144	192	240
910	7,0	80	4/23/120 + 4/27/160	30		90	120	150	180	240	300
970	7,7	120	4/27/185	30				150	180	240
1020	8,2	100	4/32/200 + 4/32/250	30		90	120	150	180	240
1120	8,2	100	4/32/200 + 4/32/250	36			144	180	216	288
1250	9,5	100	4/32/200 + 4/32/250	36		108	144	180	216	288
1320	9,5	100	4/32/250	36			144	180	216	288
		160	4/41/315	36				180	216	288
1420	10,5	100	4/32/250	36			144	180	216
